Step by step RedHat Enterprise Linux 7.x Installation guide with screenshots

Introduction

In this guide, we are about to see how to install RedHat Enterprise Linux 7.3 on a physical or virtual server in graphical mode. Before starting with the installation we will cover with minimum requirements and choosing the right architecture.

Below steps can be used by a newbie for training purpose which clearly furnished with step by step screenshots. Default file system for Red Hat Enterprise Linux comes with XFS support, the maximum supported filesystem can be extended till 500TB and supports maximum 64 TB of Memory. Moreover, the default graphical desktop environment comes with Gnome 3.8.

Installing with Red Hat Enterprise Linux 7.5 have no additional steps following the same steps we are good to go with installing any version or RHEL 7 releases.

Minimum requirements for graphical mode installation

1 GB of Memory
1 CPU or vCPU
1 NIC
10 GB minimum disk space, But 20 GB is the recommended size.

Download URL

To get any version of RHEL to navigate to below URL and choose Red Hat Enterprise Linux. To obtain the download we need to have a valid credential in redhat.com. To start with a 30 days evaluation subscription downloads we need to have a business email ID it should not be a personal ID from Gmail, Yahoo or AOL.

Click Here to download Red Hat Enterprise Linux Download

Now let’s start to install RHEL 7.3 in one of the virtual environment.

If you are trying to install RHEL7 in a physical server first we need to download the ISO and burn it in a DVD, else create with a USB bootable media to start the installation. In this guide, we are about to use a Virtual machine so we are using the downloaded ISO file.

Start Installing Red Hat Enterprise Linux 7.x

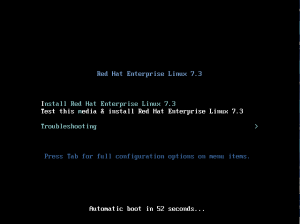

Once the ISO started to boot by default the selected option will be highlighted in second line “Test this media & install Red Hat Enterprise Linux 7.x” as shown below.

Installation Start Screen
Installation start screen

Start Graphical Installation mode

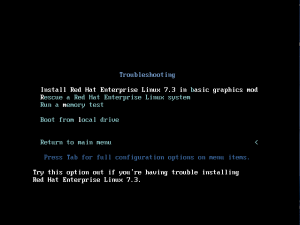

To familiar with available options in the installation screen navigate to all menus by choosing troubleshooting which will bring to know about available rescue, memory check and boot from local disk if the disk contains an operating system.

Troubleshooting menu
Troubleshooting menu

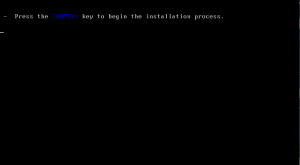

Press the enter key to start the installation or wait for 5 seconds it will start the installation automatically.

Press enter to being the installation
Press enter to being the installation

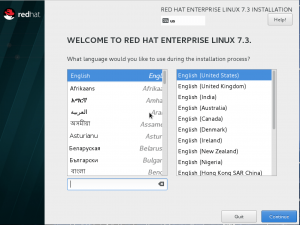

In the next screen, we will get the list of languages to choose which need to be available during the installation process. By default, United States English will be selected.

Installation time language

If you prefer to change your require language selected from the list and click continue.

Installation time language
Installation time language

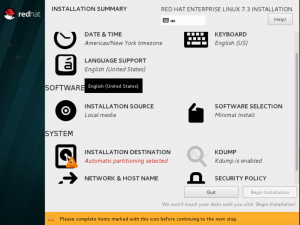

Installation Summary Window

In the next window, we will get an overview of the installation summary. Here we required to choose Date/Time, Keyboard layout, which language needs to be used in system-level, Installation source this can be Local media, HTTP, FTP. By following which software selection (What type of server need to be installed), Installation destination, Kdump configuration, network configuration and security settings.

Installation Summary window
Installation Summary window

Configure TimeZone

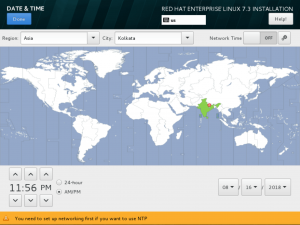

By clicking on Date & Time from installation summary page we will get the Date & Time screen to choose the required timezone and time. I’m residing in India so choosing the timezone as Asia/Kolkata, By following change the time and date at the bottom. Once all changes are done click “Done” to make the changes permanent.

Change the timezone and date
Change the timezone and date

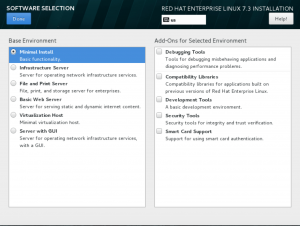

Software Selection

Continue to choose other configurations to click on “Software selection” and choose “Minimal Install” under base environment to install with minimal installation, at last click on “Done” at the left top corner to make the changes and bring back to the summary window.

Type of Installation selection
Type of Installation Selection

Choosing Installation Destination

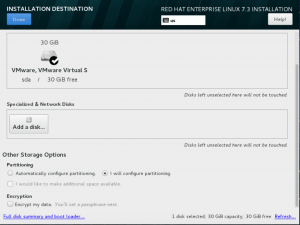

Choosing the installation destination and customizing the required size of the file system is very important. Click on “Installation destination” to choose under which disk the operating system needs to be installed.

Installation destination
Installation destination

Configuring Manual Partition

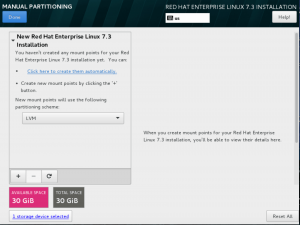

Select the first disk and choose “I will configure partitioning” then click on “Done”. By following we will get manual partitioning screen.

Create manual partitions
Create manual partitions
  • Click “+” symbol to add required filesystem mounts.

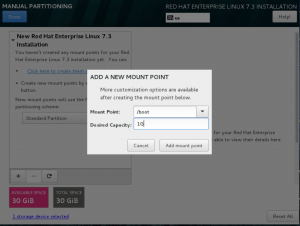

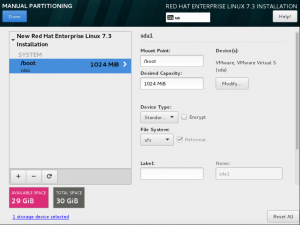

The first step we need to add with /boot partition, Make it 1 GB in size. Under-mount point choose /boot and Under desired capacity provides the size of 1G. When we provide with “G” it will take it as GB. Click add the mount point to add with new boot filesystem.

/boot partition with 1 GB
/boot Partition with 1 GB

Select the added partition and choose Device type as “Standard” for the boot mount point. Remaining filesystems will come under logical volume management.

/boot as standard partition
/boot as Standard partition

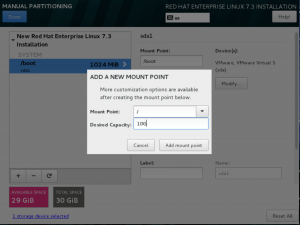

  • By following add / with 10G and device type as “logical volume”.
/ Partition with 10 GB
/ Partition with 10GB

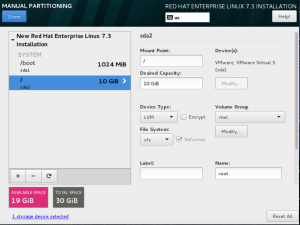

/ Partition under Logical volume management
/ Partition under Logical volume management

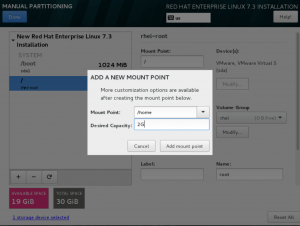

/home with 2 GB
/home with 2 GB

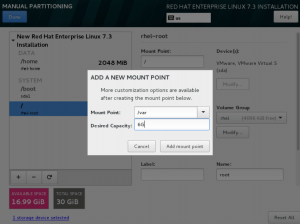

  • Add /home with 2G, /var with 6G and Swap 2 GB.
/var with 6 GB
/var with 6GB

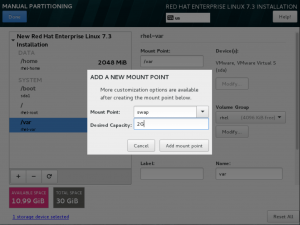

Swap with 2 GB
Swap with 2 GB
  • After creating with required mount points it will appear as shown in the below figure.

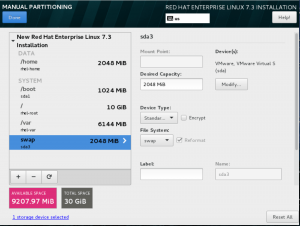

Manual Partitions layout
Manual Partitions layout

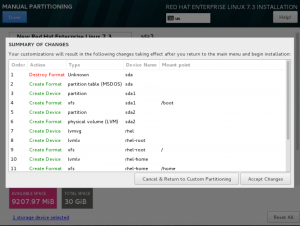

  • Click “Accept Changes” to create with partition and filesystems.
Accept changes to create with partitions and filesystems
Accept changes to create with partitions and filesystems

Configure Network & Hostname

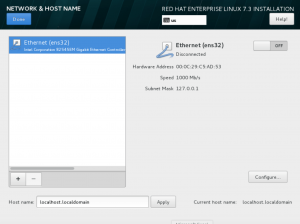

Back to Summary window click “Network & Hostname” to configure with manual IP configurations.

Network & Hostname
Network & Hostname
  • Click configure to continue with configuring interfaces.
  • Under the “General” tab click “Automatically connect to this network when it is available”.

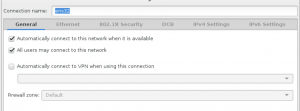

Tick the checkbox to start the interface automatically during boot
Tick the checkbox to start the interface automatically during boot

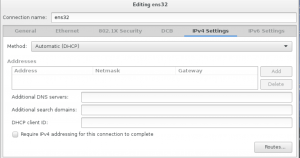

To configure the manual IP select “IPv4 settings”. Select manual under method to configure with IP information.

Configure manual IP
Configure manual IP

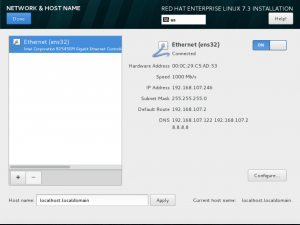

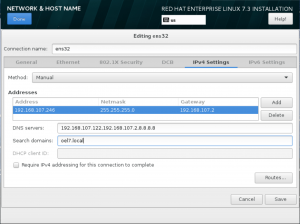

IP details
IP details
  • Slide the ON at the right corner to activate the interface.
Enable the interface
Enable the interface

Back to Installation Summary

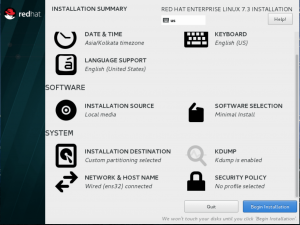

After configuring the required settings Installation summary window looks like below.

Installation summary window after configurations
Installation Summary window after configurations

Click “Begin Installation” which will bring to the next screen and ask to create with the root password.

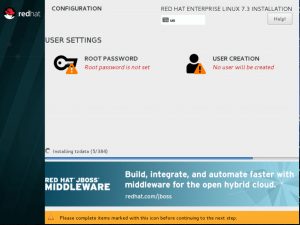

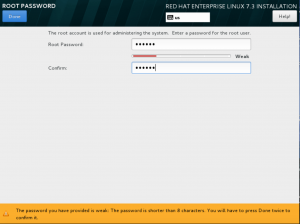

Creating Root Password

Create a root password

Create with root user password
Create with root user password
Create root password
Create a root password

Creating Administrative Privileged Account

If we required with the privileged account we can create one with SUDO.

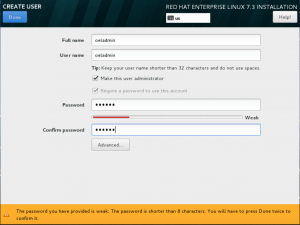

Create with root privileged account
Create with root privileged account

Reboot to complete the Installation

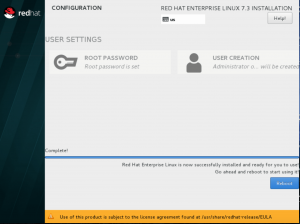

Once installation completed click “Reboot”.

Reboot the server after installation
Reboot the server after installation

After Operating System Installation

A freshly installed system will look similar below before login.

A freshly installed Linux Server
A freshly installed Linux Server

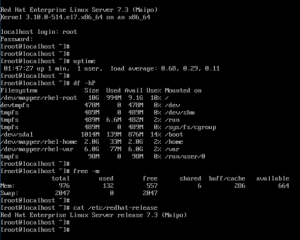

Let us log in and check with few commands.

Running with a few basic commands
Running with a few basic commands

That’s it, We have done with a minimal installation of RedHat Enterprise Linux server 7.3.

Conclusion

We have successfully completed with RHEL 7 installation, to have a lightweight operating system we used with minimal installation. In case if we required any packages it can be downloaded from the yum repository. The same steps can be carried out for any version of RedHat Enterprise Linux 7.x server installations. In upcoming articles, more advanced installations and configuration will be covered.

If have any query kindly provide in below comment section. We will back to you with appropriate answers.
